PROCESSES:
MIG: Single-Pulse and Non-pulse
Gasless MIG
MIG Spool Gun
Stick / MMA: Pulse and Non-pulse
TIG (DC lift-arc for steel/stainless): Pulse and Non-pulse
WHY PULSE?
Pulse MIG Welding (Single Pulse) allows you to weld like a pro, with very low spatter, super smooth welds and low distortion. Suitable for welding Aluminium, Stainless and Carbon Steels
Pulse STICK welding allows smoother, cleaner welds in hard to weld positions like vertical-up and overhead, plus helps bridge large gaps without burn through.
Pulse DC-TIG Welding (Lift-TIG) is well suited to creating scalloped looking TIG Welds on Stainless and Carbon Steels (stack of Dimes look) so your TIG welds exhibit the best in appearance.
AT A GLANCE:
205A @ 9% max output
MIG weld up to 12mm mild steel, Stick weld up to 12mm
Fitted with 230V 10A plug
Takes 1kg and 5kg spools
Supplied as a Value Kit with bonus helmet, gloves, pliers, cooler bag
Pulse mode in all functions (MIG, Stick, TIG)
Simple and very user-friendly controls
KEY FEATURES:
Industry-first 7-year warranty **
Very easy to navigate user interface: Intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual
Large, colour LED display
Choice of Manual MIG (voltage and wire speed adjusted manually), or Synergic MIG (set wire type/size, then just adjust one output dial based on material thickness)
Choice of Pulse mode in all processes (MIG, Stick, TIG)
Stick/MMA pulse adjustable frequency 1-10Hz
TIG pulse adjustable frequency 1-10Hz
Spool Gun Ready, Ideal for welding aluminium
Lightweight and compact
Over-specified heavy-duty 240A BZL24 MIG Torch
Large “35-50” output cable connections
Quick-connect gas inlet fitting, for fast & easy gas hose fitting/removal
APPLICATIONS & CAPABILITY
Ideal for trade, farm, maintenance, and serious hobbyist use
MIG welding 30-205A with solid Steel 0.6/0.8/0.9mm wire, material thickness approx. 0.8-12mm
MIG welding 30-205A with solid Stainless-Steel 0.8/0.9mm wire (0.8mm wire is best suited), material thickness approx. 1.2-12mm
MIG welding 30-205A with solid Aluminium 0.9/1.0mm wire (1.0mm wire is best suited), material thickness approx. 1.2-12mm
Gasless ‘MIG’ welding of steel 30-205A with 0.8/0.9mm flux-cored wires, material thickness approx. 1.2-12mm
Stick (MMA) welding 10-170A with most types of common electrodes (1.6/2.0/2.5/3.2/4.0mm), including steel & stainless, material thickness up to 12mm
TIG welding 10-170A (DC lift-arc) of steel, stainless, copper & chrome molly, ferrous metals, up to 10mm max thickness, using 1.6/2.4/3.2mm tungsten electrodes
NOT suitable for TIG welding of aluminium (this requires AC/DC TIG capability)
TECHNICAL SPECIFICATIONS:
Output Amperage: 30 – 205A
Power Supply: Single phase 230V-240V, 3 pin
Wall Socket & Plug: 10A Domestic Power
Generator Size: Minimum 8kVA, recommended 10+kVA for maximum output
Output Terminals: Large 35-50 Dinse Style
MIG Duty Cycle: 205A @ 9% | 79A @ 60% | 62A @ 100%
MMA Duty Cycle: 170A @ 10% | 69A @ 60% | 54A @ 100%
TIG Duty Cycle: 170A @ 13% | 79A @ 60% | 61A @ 100%
Wire Spool Sizes: D100mm / 1kg and D200mm / 5kg
Wire Drive System: 2 Roll, Geared-Drive Top & Bottom (well suited for feeding aluminium wires)
MIG Feed Roll Size: O.D. 30mm x I.D. 22mm x Width 10mm
MIG Gun Type: BZL 24 x 3m
Dimensions of machine only including handle: L465 x W225 x H365mm
Weight of machine only: 10.7kg
IP Rating: IP21S
Manufactured to AS 60974.1 standard

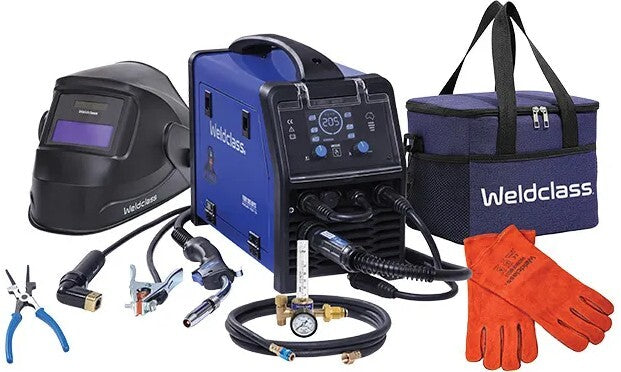

INCLUDES:
FURY 205 MPST Machine
PROMAX 130 Auto Darkening Helmet
MIG Gun BZL24 x 3m
Earth / Work return Lead & Clamp 3m
Stick Welding Lead with Twist-Lock holder 3m
Gas regulator and 2.5m Hose with quick-connect fitting to machine
Wire Feed Rollers: Solid/Steel 0.8/0.9mm, Flux-Cored 0.8/0.9mm, Aluminium 0.9/1.0mm
Welding Gloves
MIG Pliers
Cooler Bag - For Hot Days and Cold Drinks
OPTIONAL ACCESSORIES:
TIG Torch #17FV 4m (WC-00992)
Spool Gun BZL24 5m (W06316)
T100 Welding Trolley (WC-06235)
COMMON SPARE PARTS
MIG Torch and Spares (BZL 24)
Drive Rollers
Gas Hose (WC-03338)
Earth Lead (WC-06232)
Electrode Holder Lead (WC-06233)
