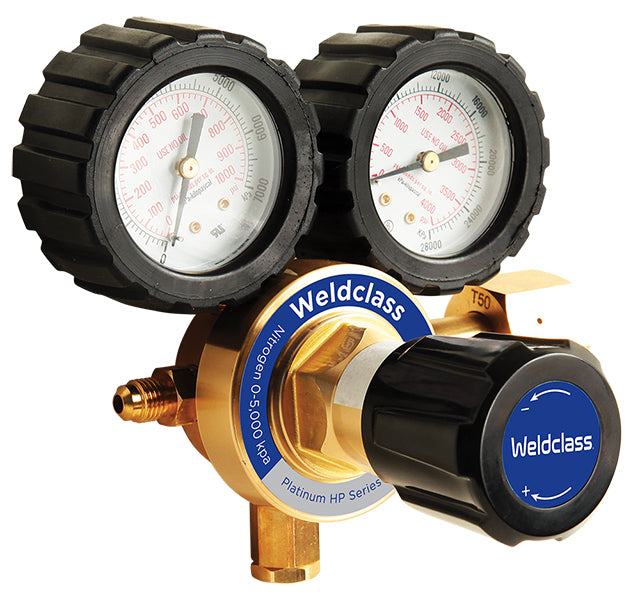

Description
KEY FEATURES
- 7-Year Warranty*
- Heavy-duty Platinum series
- Rubber gauge covers protect gauges from impact
- Commonly used for HVAC (heating & air conditioning) pressure testing
PRESSURE CAPACITY
- Max Output (delivery pressure): 5,000KPa / 50 bar / 700psi
- Max Inlet (cylinder pressure): 22Mpa / 22,000Kpa / 220 bar / 3,190psi
CONNECTIONS
- Outlet: "1/4 Flare" (JIC 37° Flare Fitting) with thread size / O.D. 7/16-20 (= approx 11.1mm)*
*Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output - Inlet: Type 50 (W24x2 14 TPI RH Female nut)
- Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)
OTHER SPECIFICATIONS
- Operating (ambient) temperature range: -20°c - +60°c
SPARE PARTS
- Spigot and Nut Kit: WC-01604
- Inlet (high pressure) gauge 0-30,000kpa: P4-HPARG
- Outlet (low pressure) gauge 0-7,000kpa: WC-01738
- O-ring for Type 50 spigot: Available for most bearing supply retailers, size ID 7.65 x OD 11.21 x Dia 1.78mm (ID 5/16 x OD 7/16 x Dia 1/16")
