Manufactured in Taiwan
"New Low Profile Magnetic Drilling Machine" is designed to can enter spaces impossible to reach with a conventional magnetic drill as the total height is only 200mm.
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

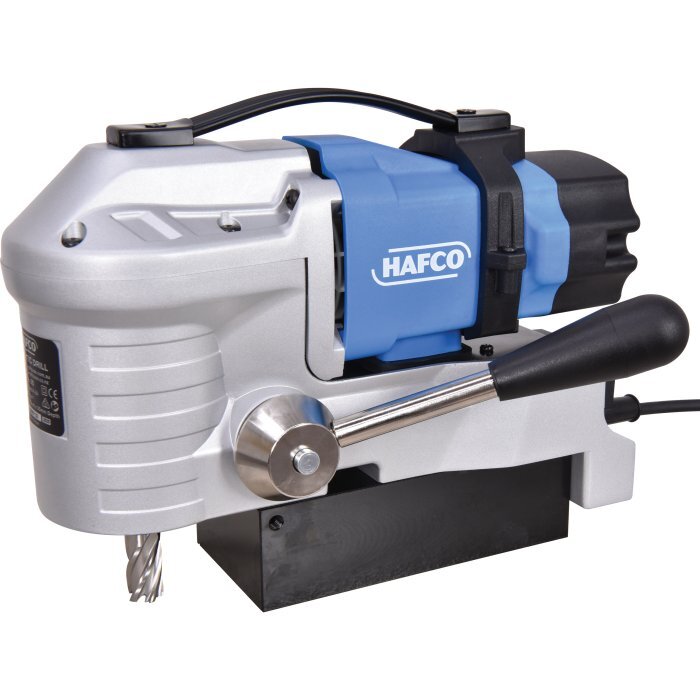

NOTE: Shown with optional broach cutter
| Feed | Manual |
|---|---|
| (mm)Drilling Capacity Range - Manual | 12 - 35 |
| (mm)Maximum Thickness | 35 |
| (mm)Suits Cutter Shank Size | 19 |
| (No.)Number of Drilling Speeds | 1 |
| (rpm)Full Load Drilling Speeds | 390 |
| (rpm)No Load Drilling Speeds | 650 |
| (kg/f)Magnetic Holding Power | 1500 |
| (kW / hp)Motor Power | 1.1 / 1.46 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Machine Weight Only | 10 |
| (kg)Nett Weight | 14 |
