- Head Caps: 1/16″ (1.5mm), 1/8″ (3.2mm) and 1/4″ (6.4mm), head caps machined with offset value and uniquely colour anodised for ease of use
- 62.3mm long (not including blade stick out)
- Bearings: Dual 7/8” diameter ball bearings offer best balance between radial load capacity and minimal overall length
- Shank: Hardened steel 8mm Diameter x 36mm length

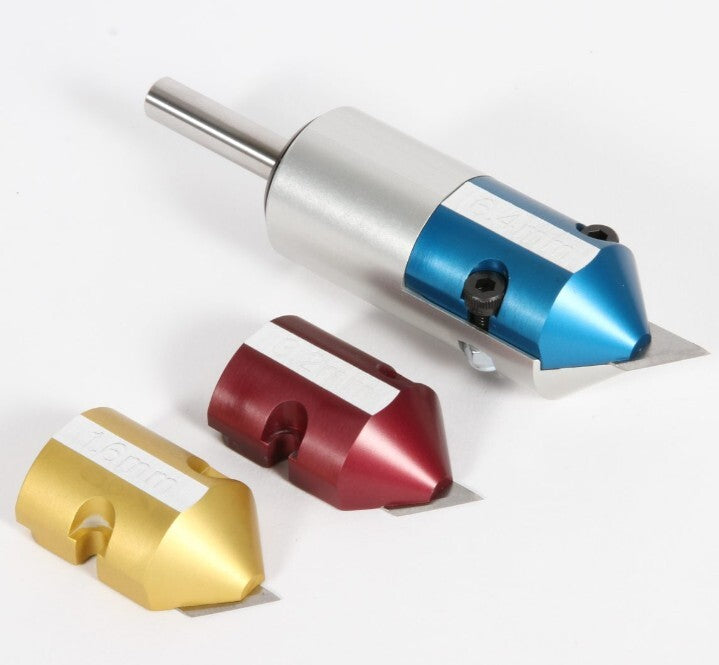

- Drag knife comes with swappable heads for easy fixed offset ranges:
1.5mm offset for 1.5mm Radius & Material Thickness
3.2mm offset for 3.2mm Radius & Material Thickness
6.4mm offset for 6.4mm Radius & Material Thickness
- Head caps machined with offset value and uniquely colour anodised for ease of use
- Cut thin materials with your CNC machine with this sturdy drag knife tool. Its unique one-piece body design makes it the strongest design available. The body spins on two ball bearings about the shaft. The blade point is offset from the shaft centreline, so it is “dragged” around to cut.
- The drag knife is designed with an offset from the centreline. Like a train caboose, when the machine moves, the blade follows and is “dragged” along behind. This keeps the cutting edge of the blade pointed in the forward direction. The amount of offset dictates how tight you can corner. The smaller offset is better for smaller details, and the larger offset is going to be able to cut thicker. Without added arcs at corners, you do not want to cut a corner with radius less than the offset of the tool (no sharp acute corners). Generally, you’ll want to cut through material that is not thicker than your offset.
- 7075 AL. M5 bolt with steel reinforced threads. Reinforcing the threads with a steel insert is standard industry practice to correct for this. With this model, you can clamp the blade securely and it is designed to last.
