Overview
Manufactured in Taiwan

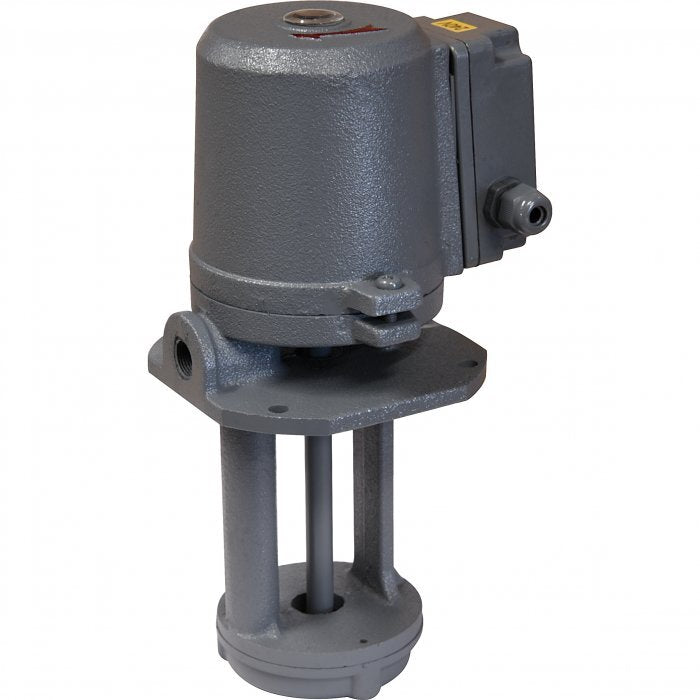

135mm Leg COOLANT PUMP BARE - 240V
Bare pump for almost any application
Features
- 20 litres/min. at 1 metre lift
- 135mm submersible leg
- Non-corrosive plastic impellers
- Please Note: Motor housing should never be submersed or have any fluid splashed on it
| ORDER CODE |
P232 |
| MODEL |
CP-20L1 |
| Type |
Coolant Pump |
|
(L/min)Discharge at 1 metre Lift |
20 |
|
(mm)Length (L) |
290 |
|
(mm)Submerge Depth (L1) |
134 |
|
(mm)4 Mount Holes (PCD) |
128 |
|
(BSPT)Threaded Outlet |
3/8" |
|
(mm)A |
96 |
|
(mm)B |
95 |
|
(mm)C |
290 |
|
(mm)D |
134 |
|
(mm)E |
121 |
|
(mm)F |
90 |
|
(mm)G |
156 |
| H |
3/8" PT |
|
(mm)I |
128 |
|
(mm)J |
8 |
|
(mm)K |
6 |
|
(hp)Motor Power |
1/8 |
|
(V / amp)Voltage / Amperage |
240 / 10 |
|
(mm)Dimensions (L x W x H) |
300 x 150 x 210 |
|
(kg)Nett Weight |
6.1 |
