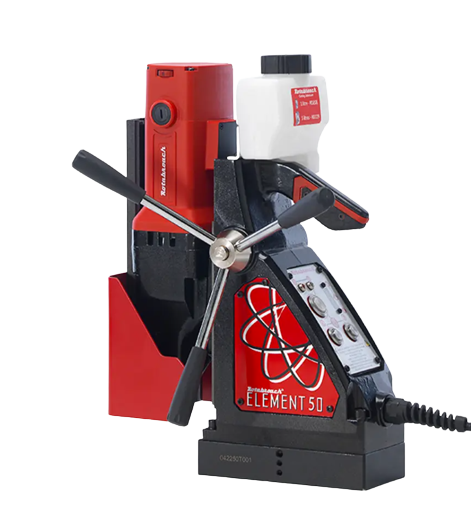

ELEMENT 50
The ‘Element 50’ is one of Rotabroach’s most versatile machines.
Small in size, with reversible features to allow tapping.
Dual motor protection system prolonging the machines life.
Internal cabling removed the risk of damage and downtime for your magdrill
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
|
Model Number |
Element 50/3 |
|
Motor Specification |
230V 1500W |
|
No load RPM |
Low Gear: 100-265 RPM/High Gear: 200-500 RPM |
|
Max Hole Cutting Capacity |
ø50 x 50mm Deep – 23mm with MT Shank Drill |
|
Overall Dimension |
Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard |
|
Machine Weight |
15.8kg |
|
Magnetic Adhesion |
13,500N |
|
Magnet Size |
200mm x 98mm |
|
Safety Features |
Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
