Overview
Range:
Metric sizes Ø11.9 - Ø26.9mm
Imperial size Ø15/32 - Ø1-1/16"
Features
- High speed steel blades
- Adjustable blades for accurate hole sizing
- Square drive shaft for hand wrench
- Universal for metric & imperial sizes
- Suitable for use on ferrous or non ferrous metals.
- The reamer blades are made from High Speed Steel, accurately hardened 60 - 64 HRC and relief ground.
- Each adjustable reamer has a chamfer or lead on the front end of diameter 0.004" - 0.019" according to size, which helps to make a quick start in reaming operation.
- Reamers expand by loosening one adjusting nut and tightening the other.
- Cocentricity within : 30 microns.

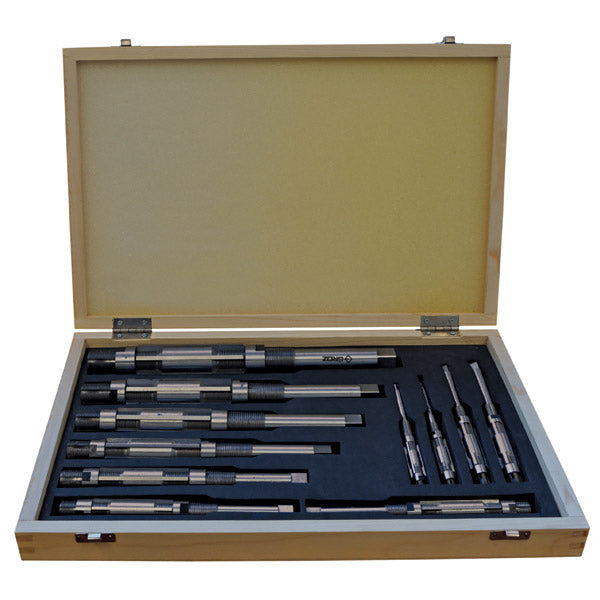

Includes
- Size A: Ø11.9 - Ø13.5mm (15/32" - 17/32")
- Size B: Ø13.5 - Ø15.0mm (17/32" - 19/32")
- Size C: Ø15.0 - Ø16.6mm (19/32" - 21/32")
- Size D: Ø16.6 - Ø18.2mm (21/32" - 23/32")
- Size E: Ø18.2 - Ø19.8mm (23/32" - 25/32")
- Size F: Ø19.8 - Ø21.4mm (25/32" - 27/32")
- Size G: Ø21.4 - Ø23.8mm (27/32" - 15/16")
- Size H: Ø23.8 - Ø26.9mm (15/16" - 1-1/16")
